Imagery

Satamap 10

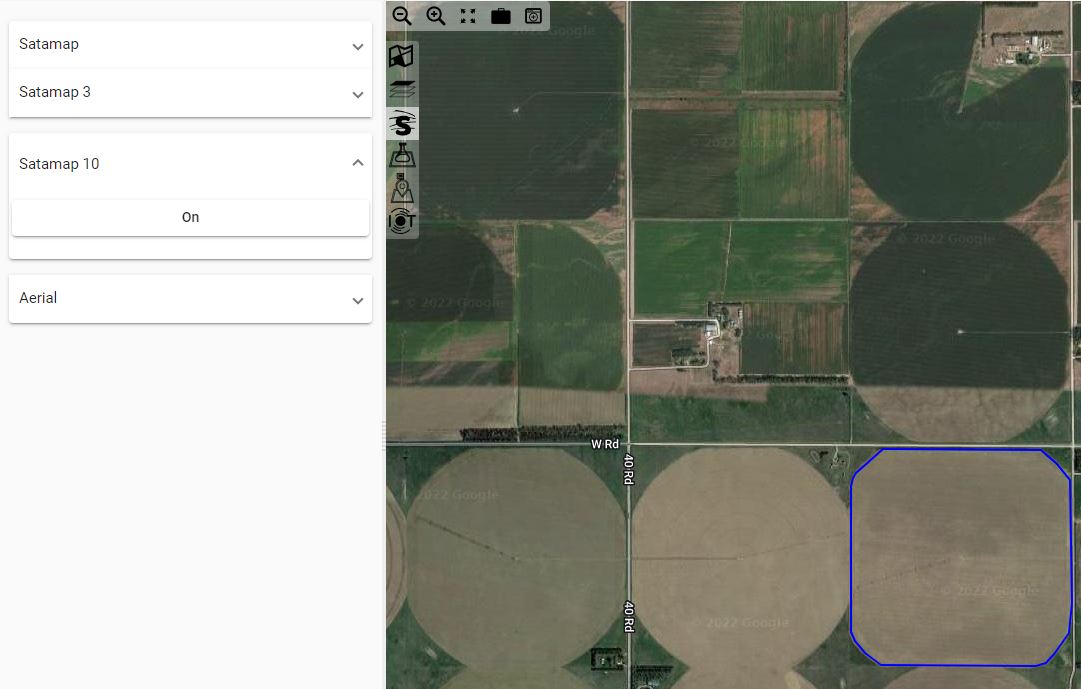

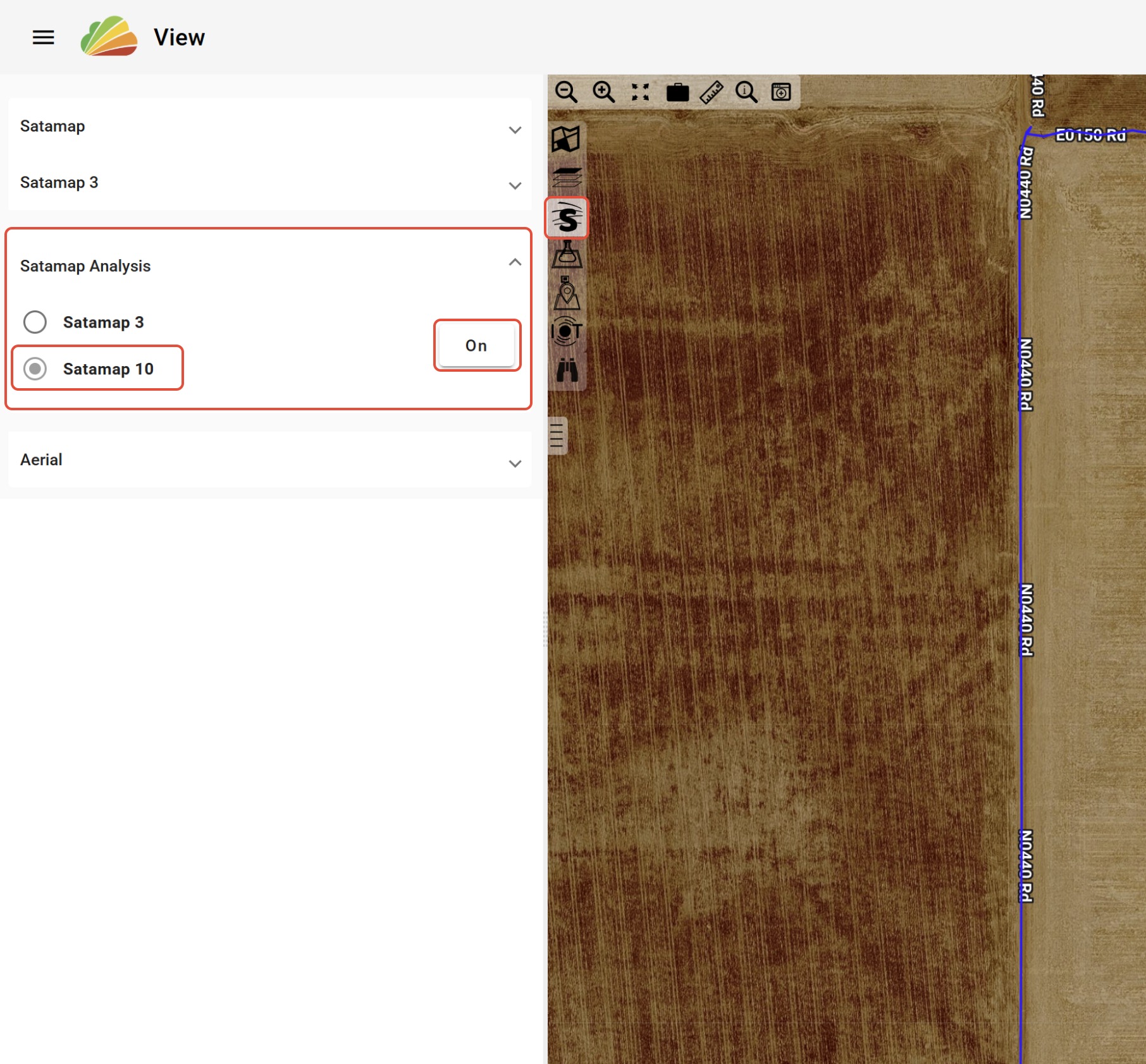

Selecting "On" for Satamap 10 will load Sentinel 2 imagery with PCT’s selection of indices available. Up to 10 fields can be viewed at a time

Display

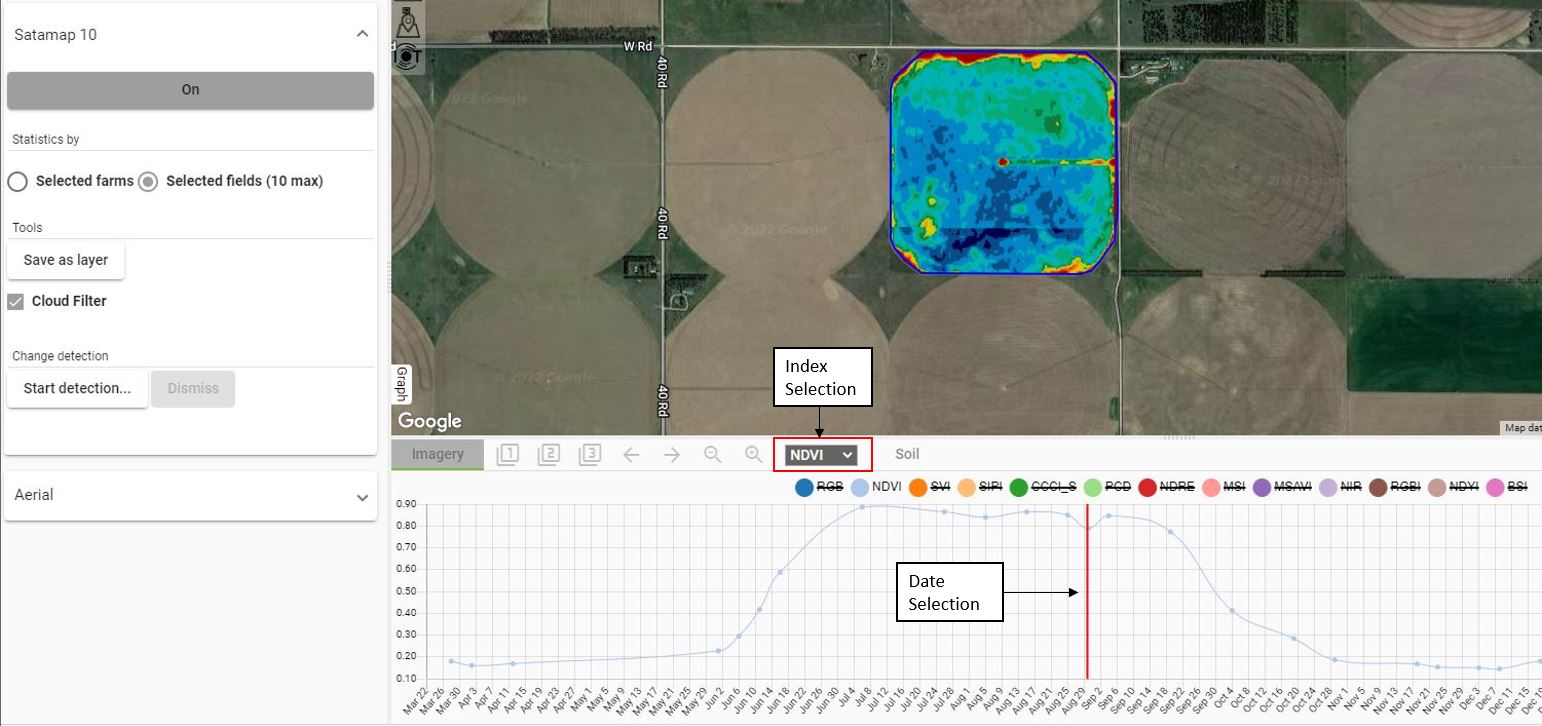

Indices can be changed in the drop-down menu. Date selection can be changed via the graph below the view window.

Graph

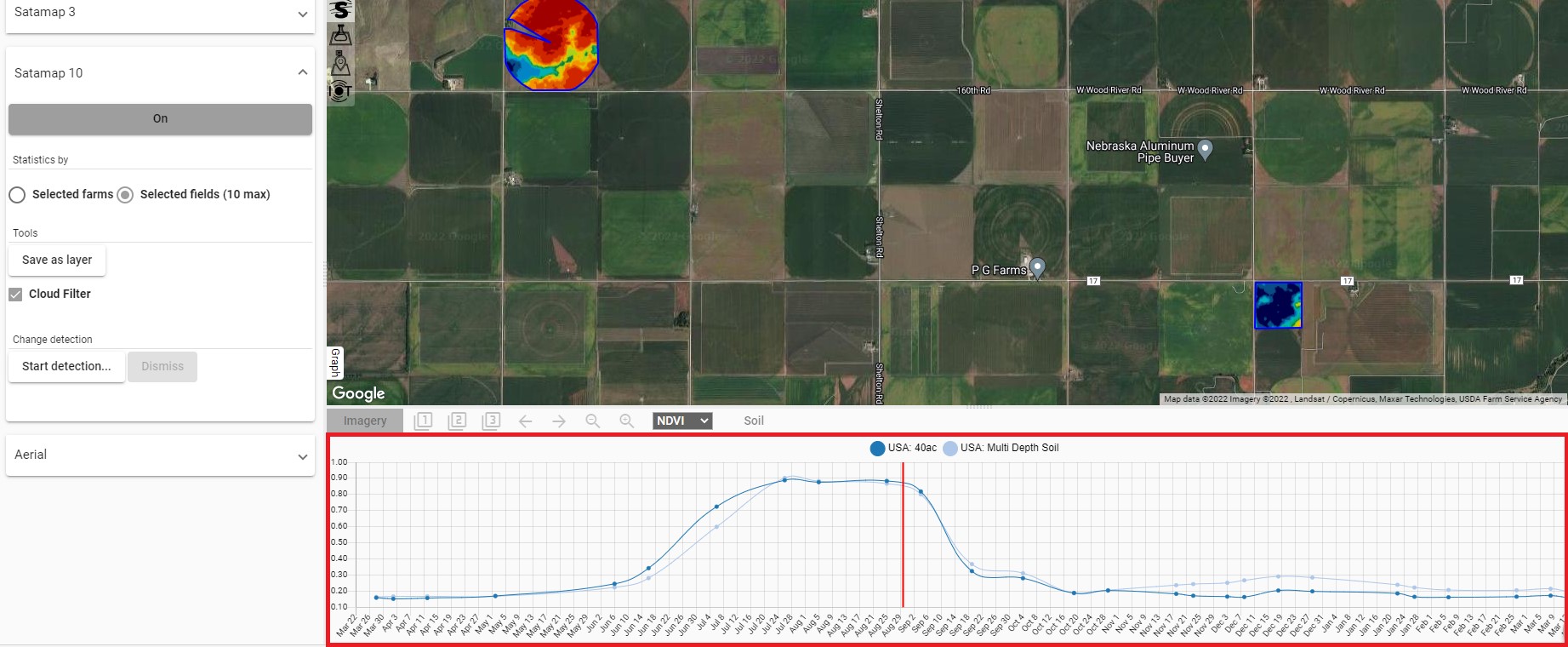

The chart at the bottom of the screen will show a colored line for each selected field. The dots within the lines represent different days of imagery over the course of a year. This chart and its respective lines will change depending on which index is chosen from the drop-down menu.

Tools

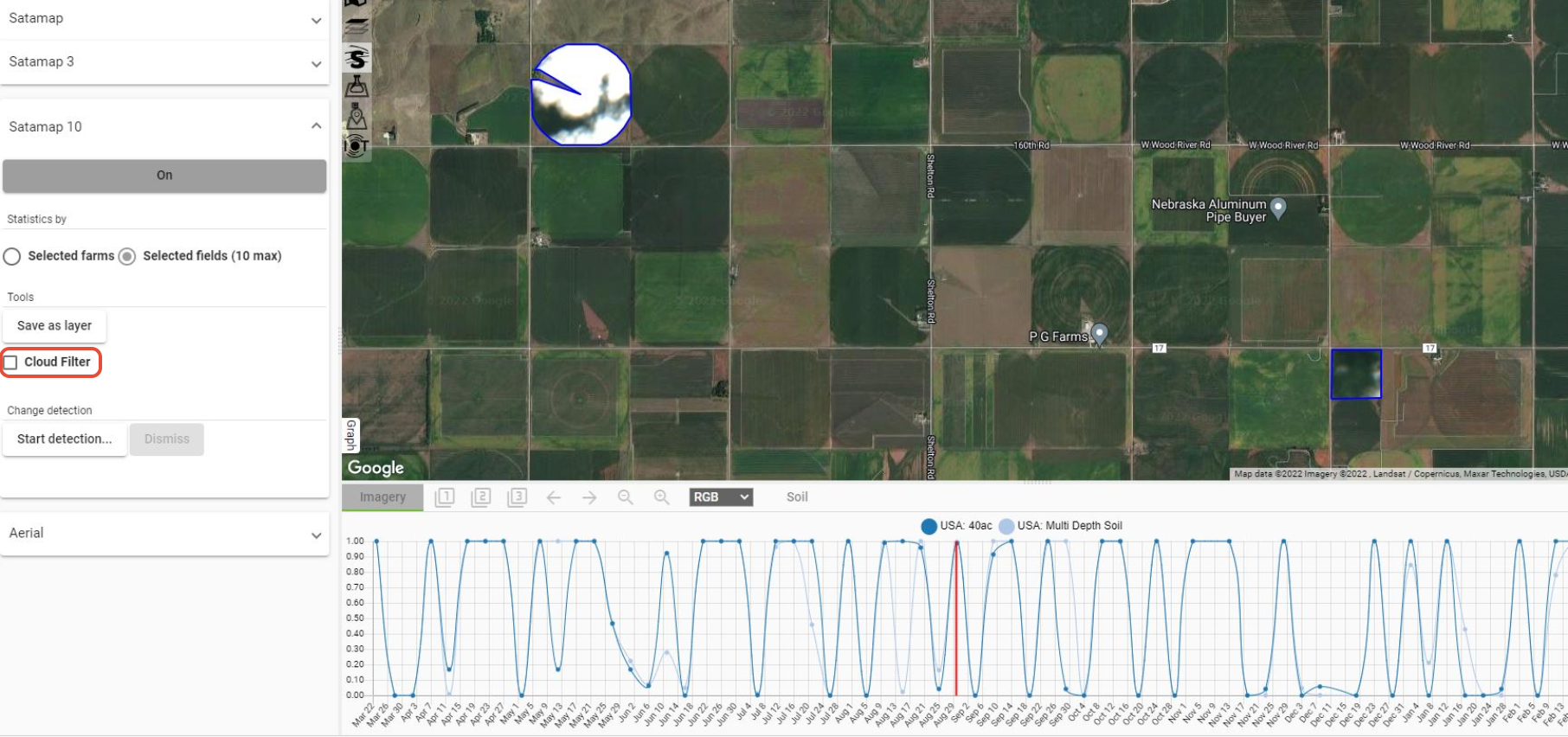

Cloud Filter

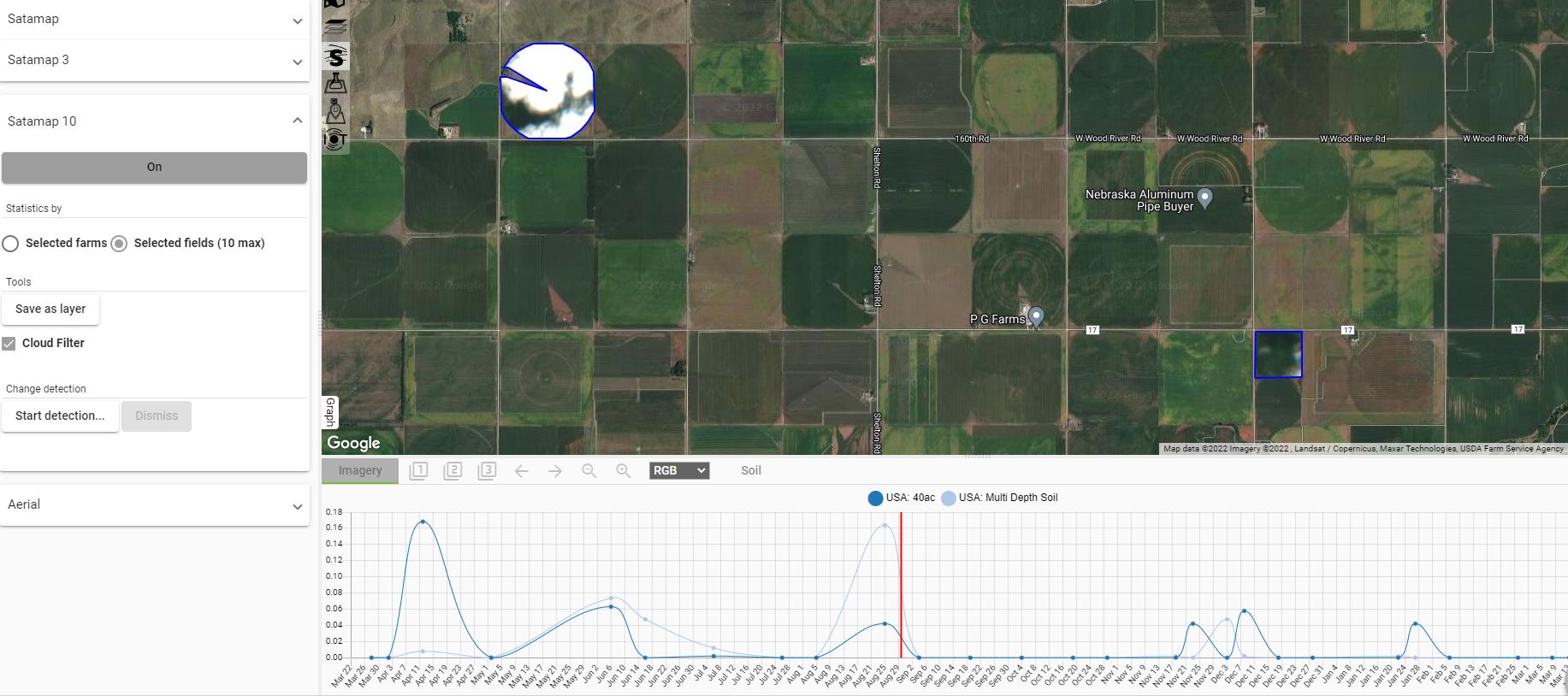

When selecting 'Cloud Filter', images in the date range will be included that were automatically filtered out. With 'Cloud Filter' off, the chart at the bottom will show all images no matter the cloud cover percentage.

With the 'Cloud Filter' On, the graph at the bottom will only show "Cloud Free" images available.

Save Layer

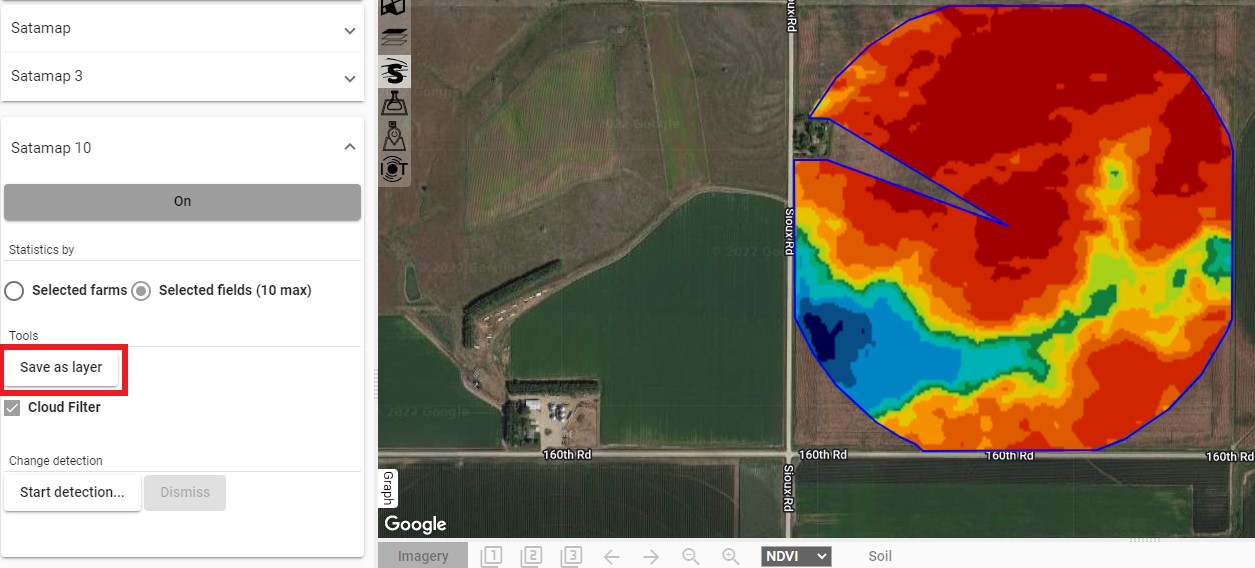

To import a specific image date to PCT layers, select 'Save as layer'.

Change Detection

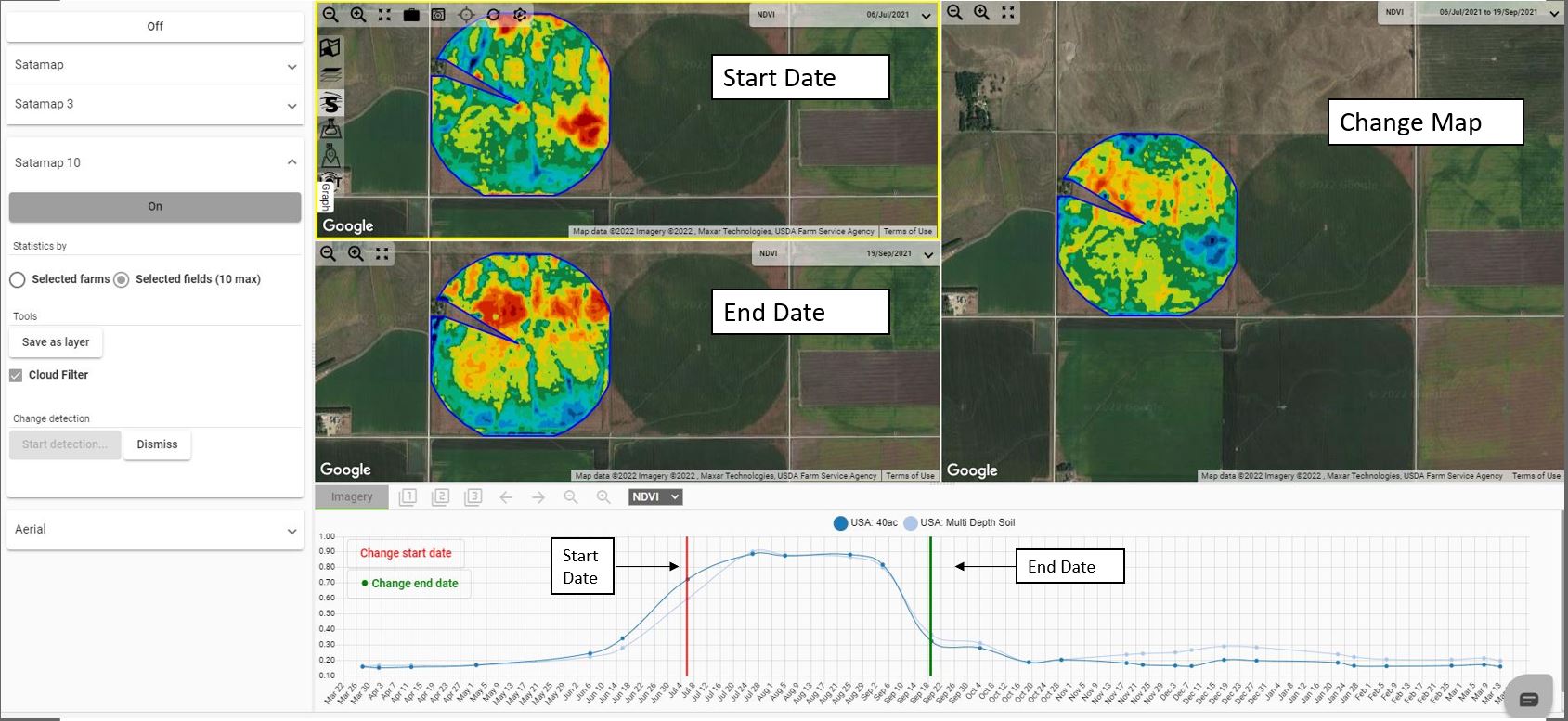

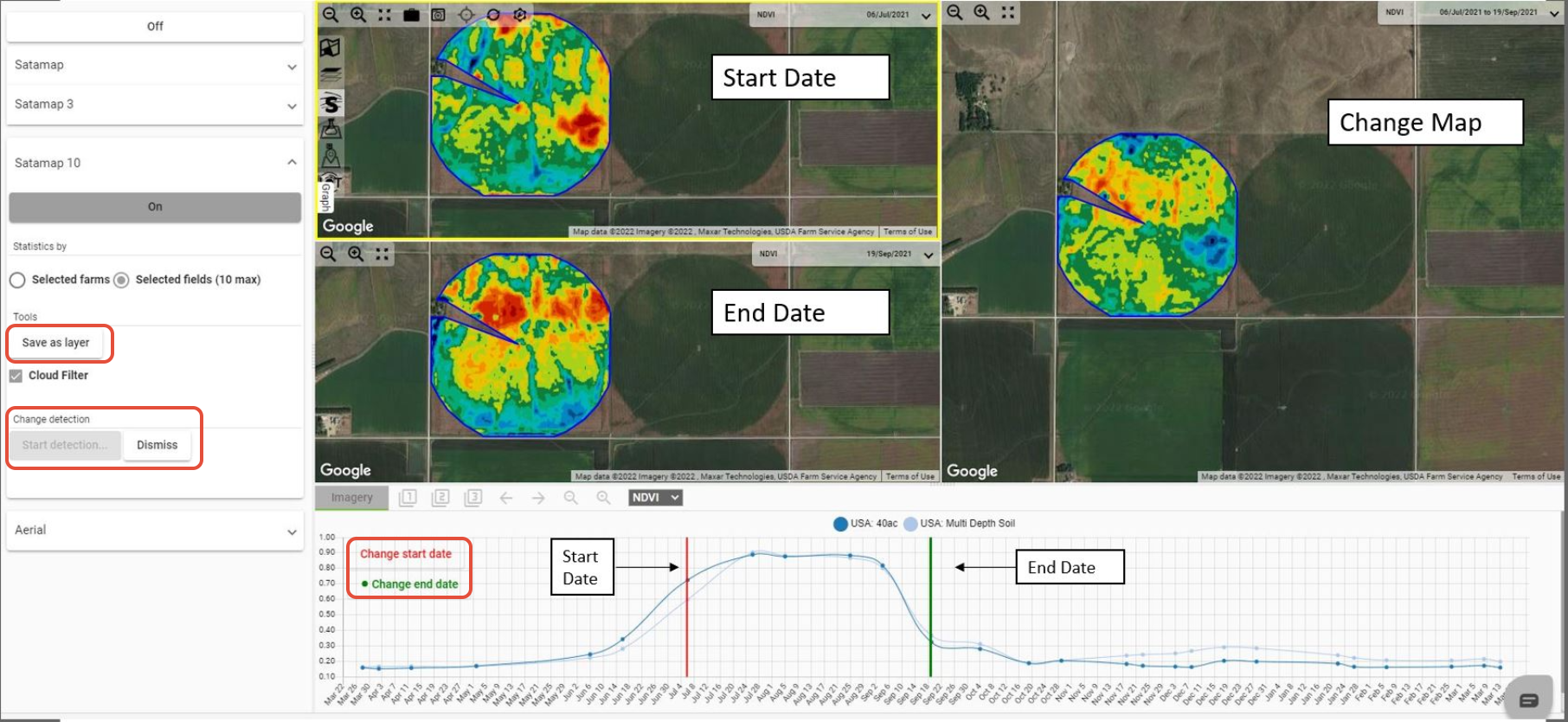

Change Detection will allow you to select a start and end date for a selected index. It will open three map windows in the view screen, the top left is Start Date, the bottom left is End Date, and the right screen is the Change Map.
