View Quality Layers and HIDs

This article will show how to load and view Linked Cotton quality layers, as well as have to view tabular data from individual HIDs.

Steps:

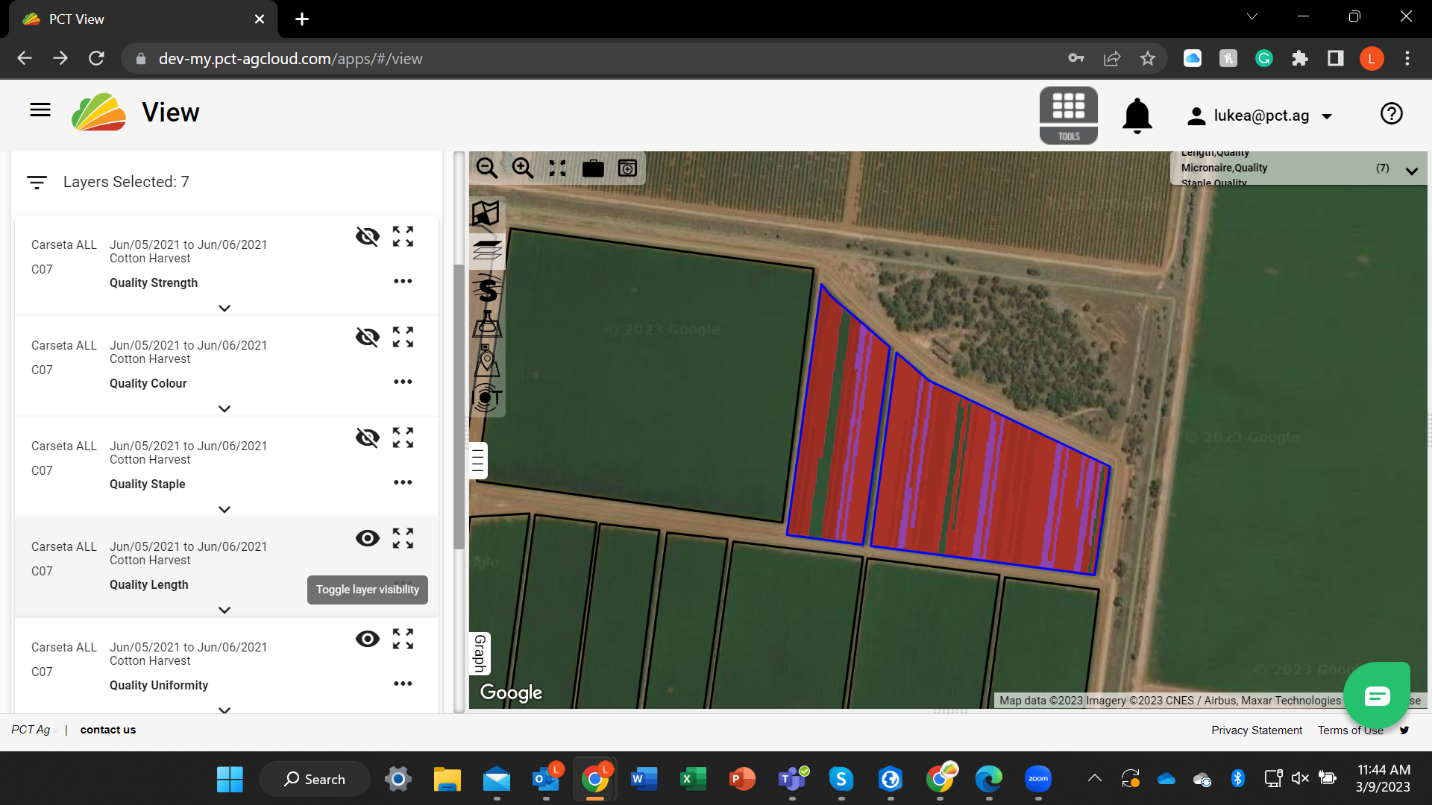

1. To view quality layers, first, click the ‘Layers’ button in View.

2. In the layers pane, specify the season, crop, and layer types. Then click ‘Load with default legend’.

3. Once the layers have been loaded and are visible, individual layers can be toggled on and off in the map view by clicking the ‘Toggle layer visibility’ button represented by the eye icon.

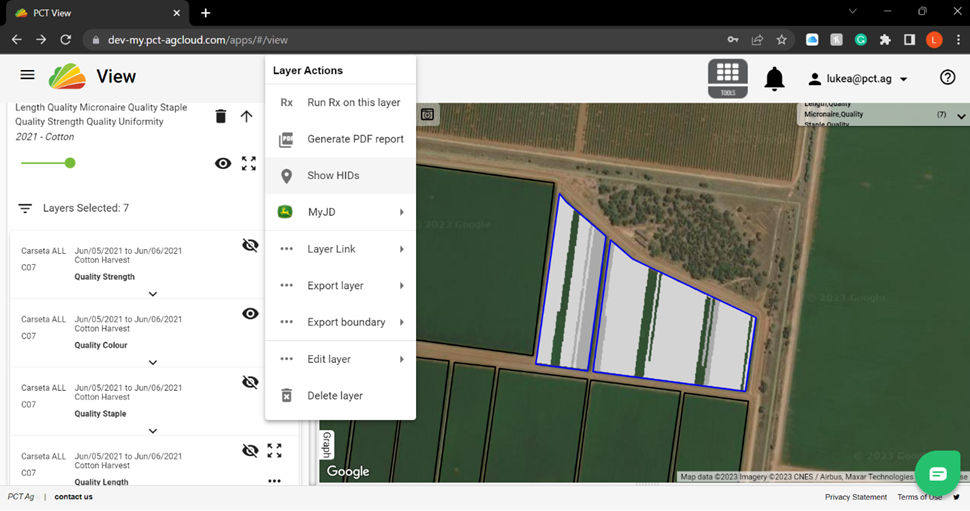

4. To show HIDs in the layer click the ‘More options' button represented by the three dots and click ‘Show HIDs’. This will display the individual HIDs in the map view.

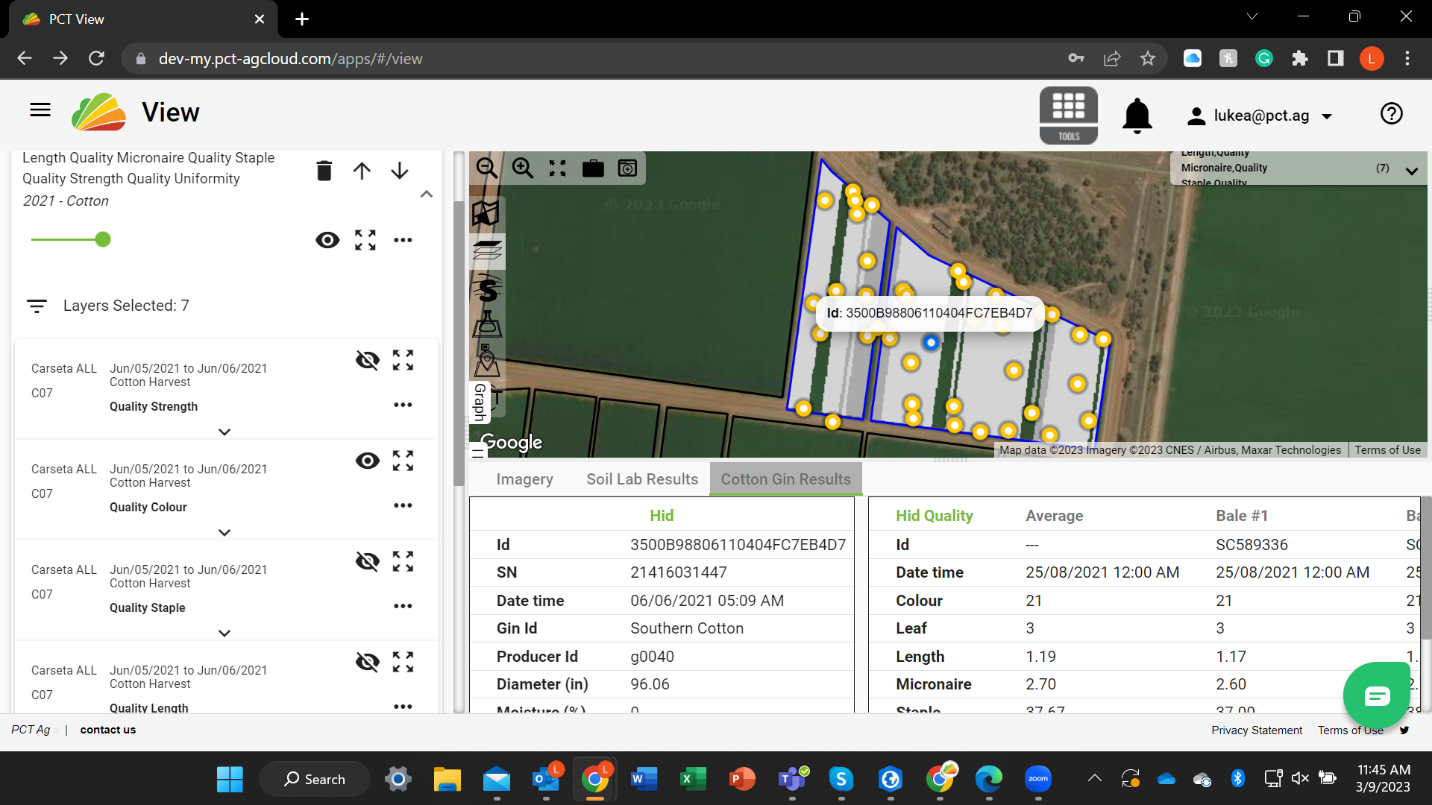

5. To view the tabular data associated with an HID, click on an HID represented by the yellow dots. This will display a table containing information about the HID and a table containing information about the quality of the HID. The data in the HID quality table includes information for each bale as well as each round. The rounds are calculated as the average of the bales.
