Create Manual Rx in Operations Center™

Prescriptions can be made quickly and easily from PCT Agcloud map layers in Operations Center™.

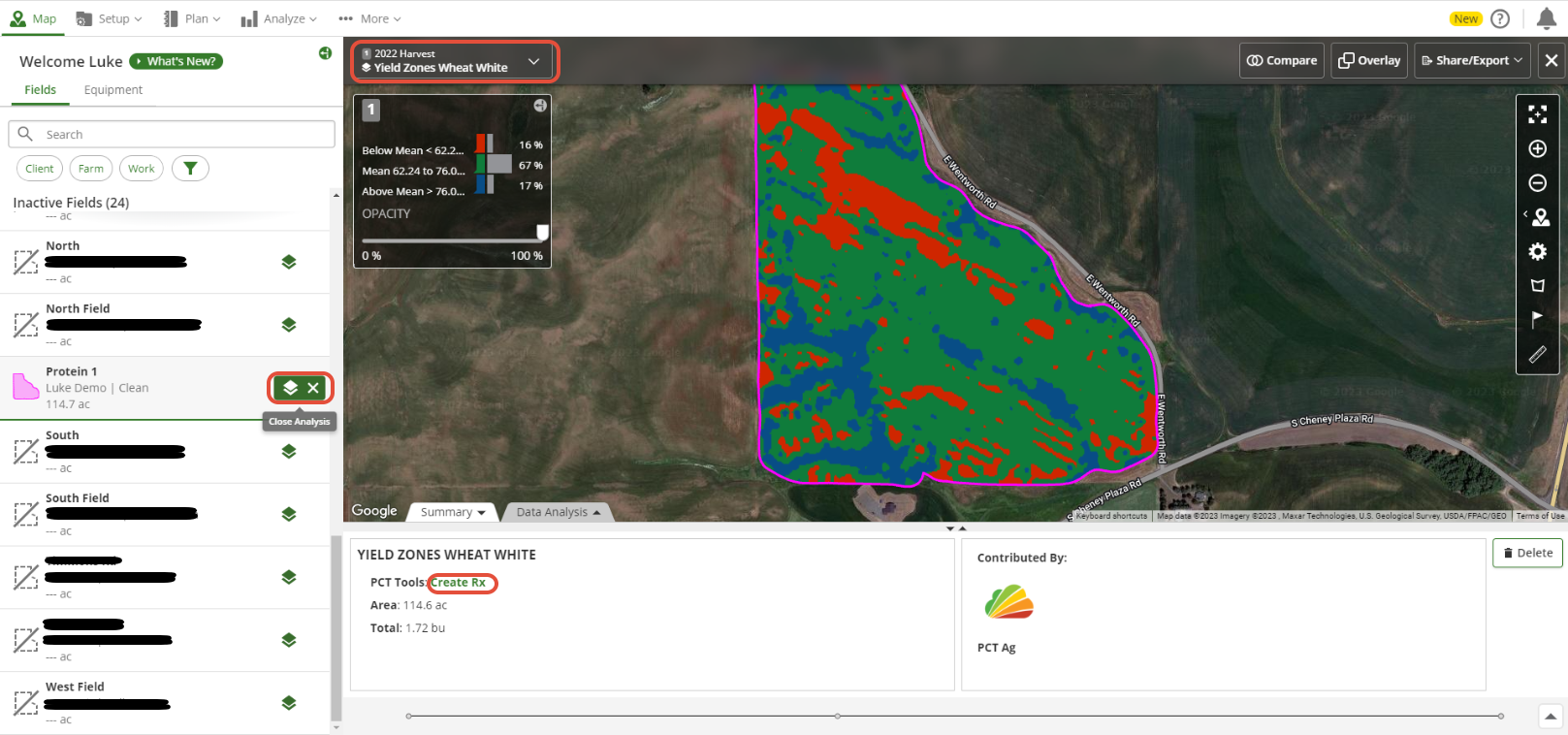

• In the 'Map' tab in Operations Center™, click the 'Analyzer' button next to the field.
• Select the desired layer from the dropdown.
• Click the "Create Rx" link.

This will open PCT Agcloud Rx. No login to PCT Agcloud is required

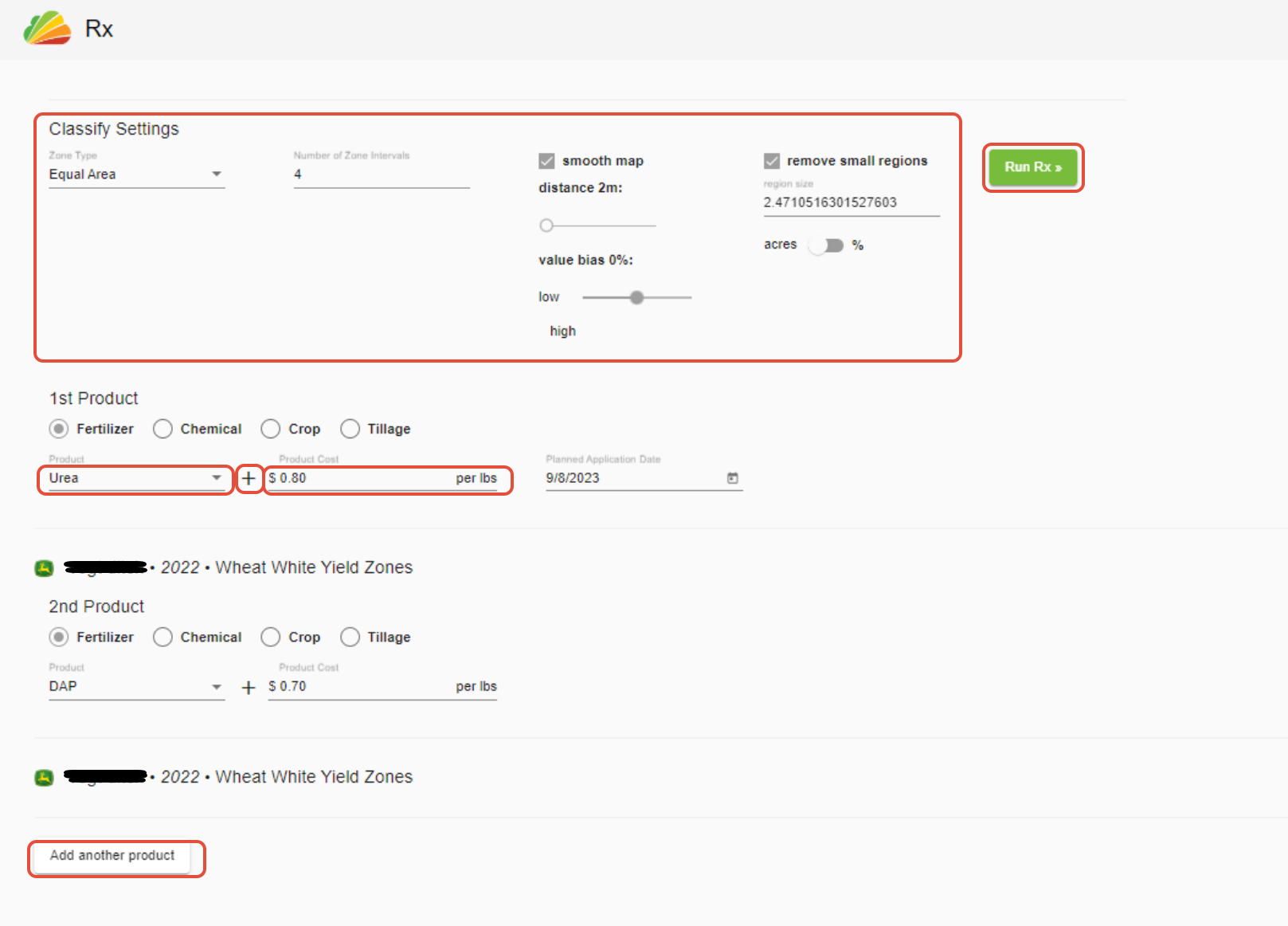

• Complete the Rx by performing the following:
  • Selecting a product (note: multiple products can be added to the Rx)
  • Include a product cost to calculate a total cost (not required)
  • Choose a zoning method as well as smoothing and remove small regions as desired
  • Click 'Run Rx'
  • Assign rates to the zones

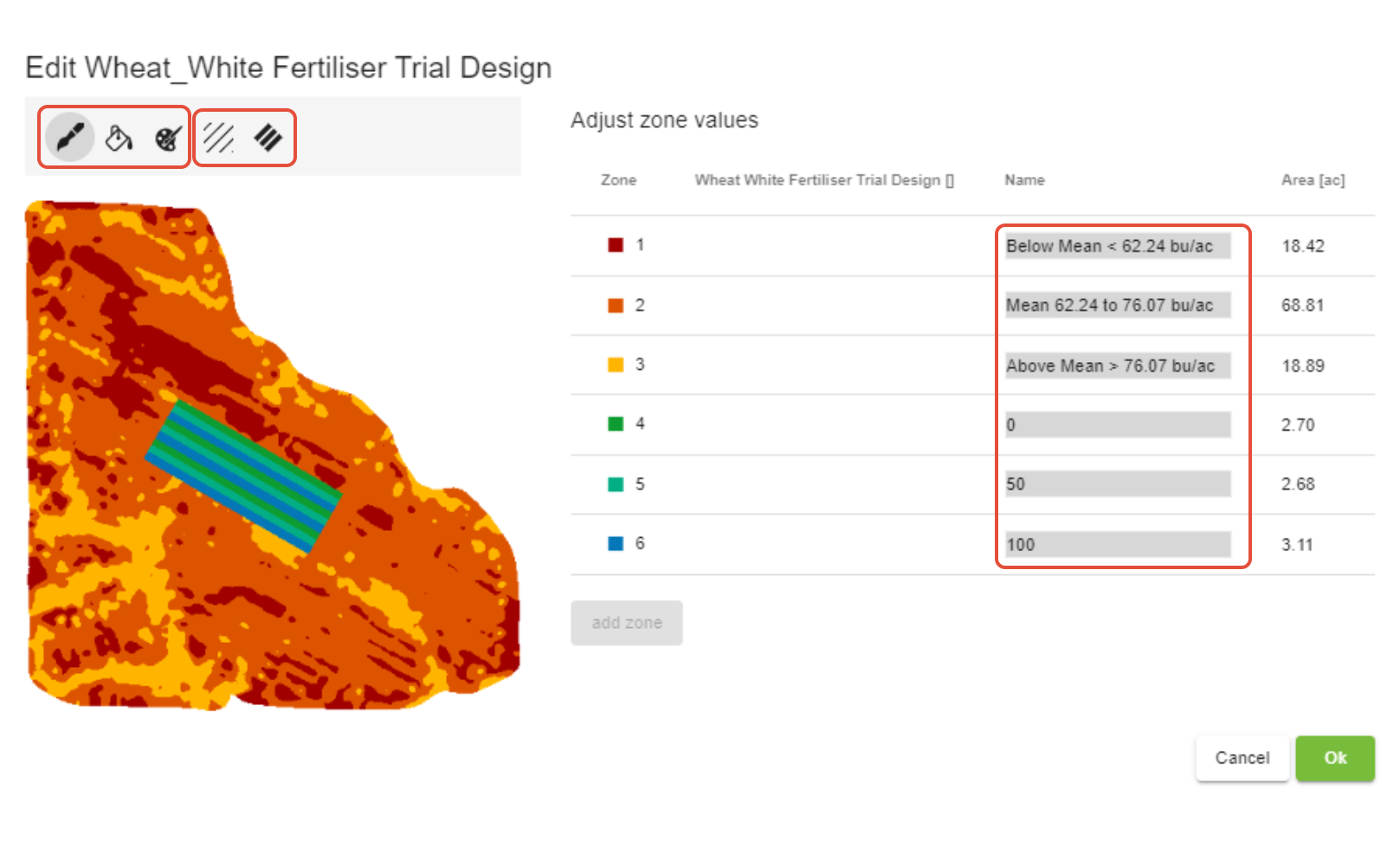

• Click the 'Edit Layer' button to edit and name zones or add strip trials.

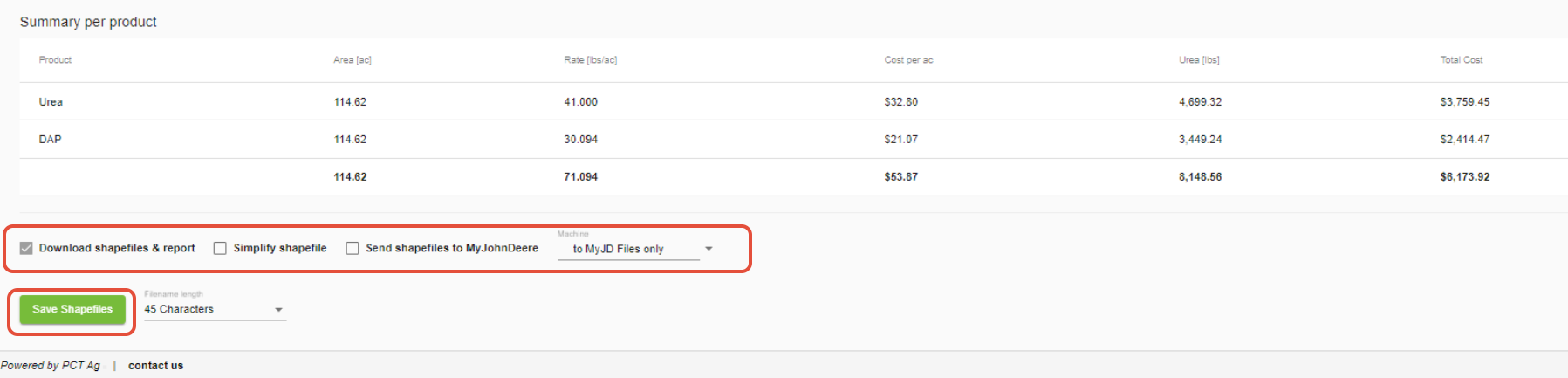

• You can then choose to Download a Report and Shapefile of Rx.
• You can also choose to send it directly to Operations Center™. This will send Rx directly to the Files area ready to transfer to equipment. It will also add a Planned Rx layer in Field Analyzer to show a record of the planned Rx.
• 'Simplify shapefile' will reduce the file size by combining the same rate zones together within the shapefile. Use if required.
• Click 'Save Shapefiles'.
