Intelli Zones

Created by Info Admin, Modified on Wed, 27 Dec, 2023 at 4:24 AM by Info Admin

Intelli Zones is an extension of Smart Start Zones where a third layer is used to intersect the SSZ.

Examples include:

SSZ9 intersected with Combined yield.

Steps:

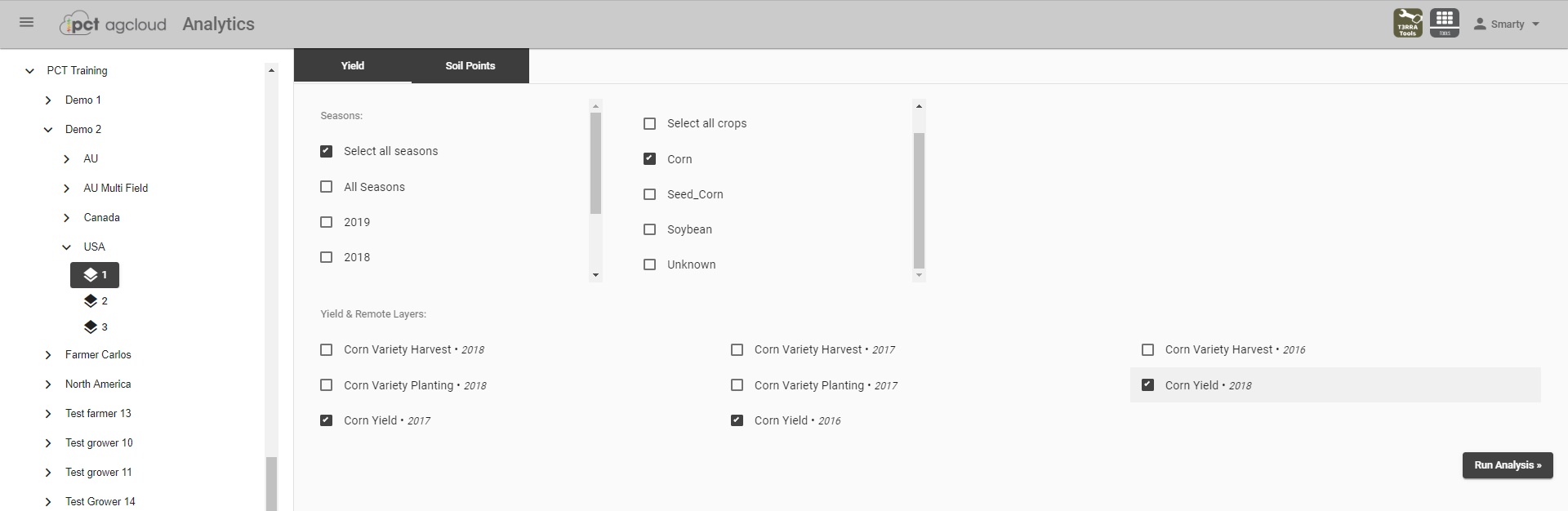

1. Combine multiple years of yield in the Analytics tool.

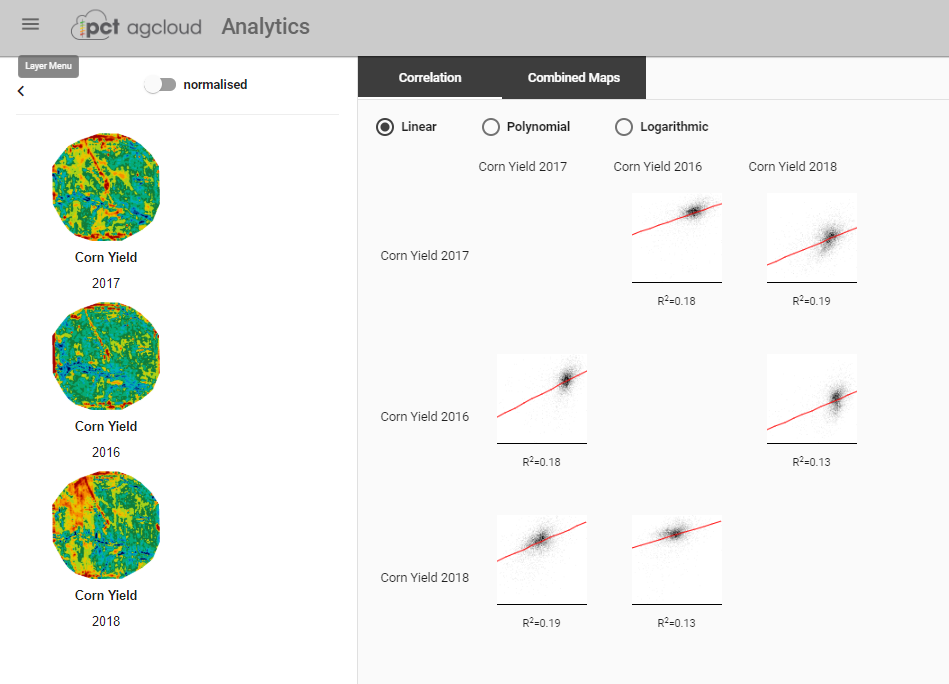

2. Check the correlations then move to the 'Combined Maps' tab.

3. Save the file but make sure the zone is set to none. If it is defaulting to some other zone type then select 'None' and 'Classify Layer' to remove the zones.

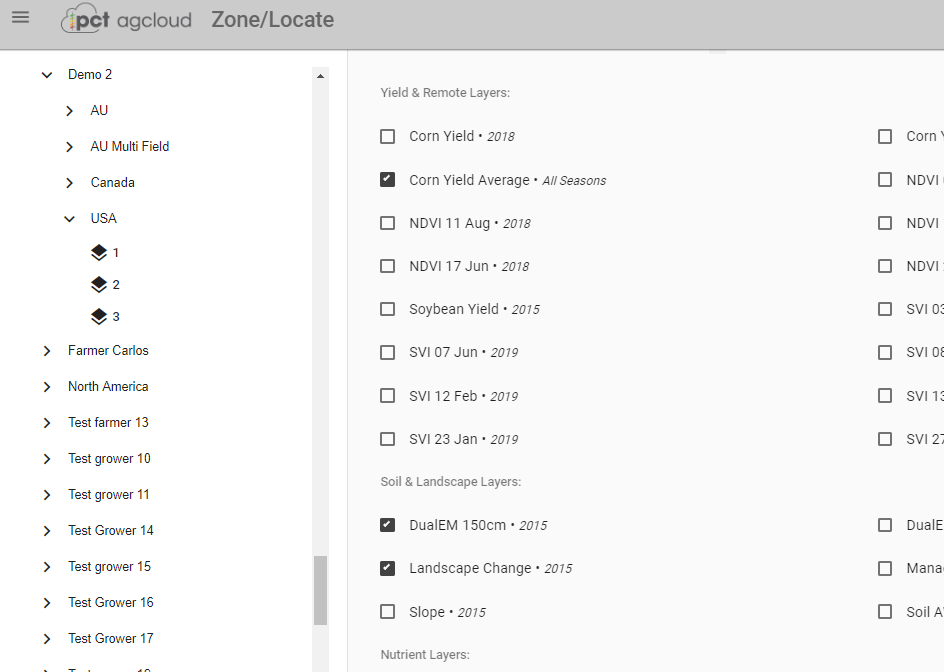

4. Once saved, return to the Zone/Locate tool.

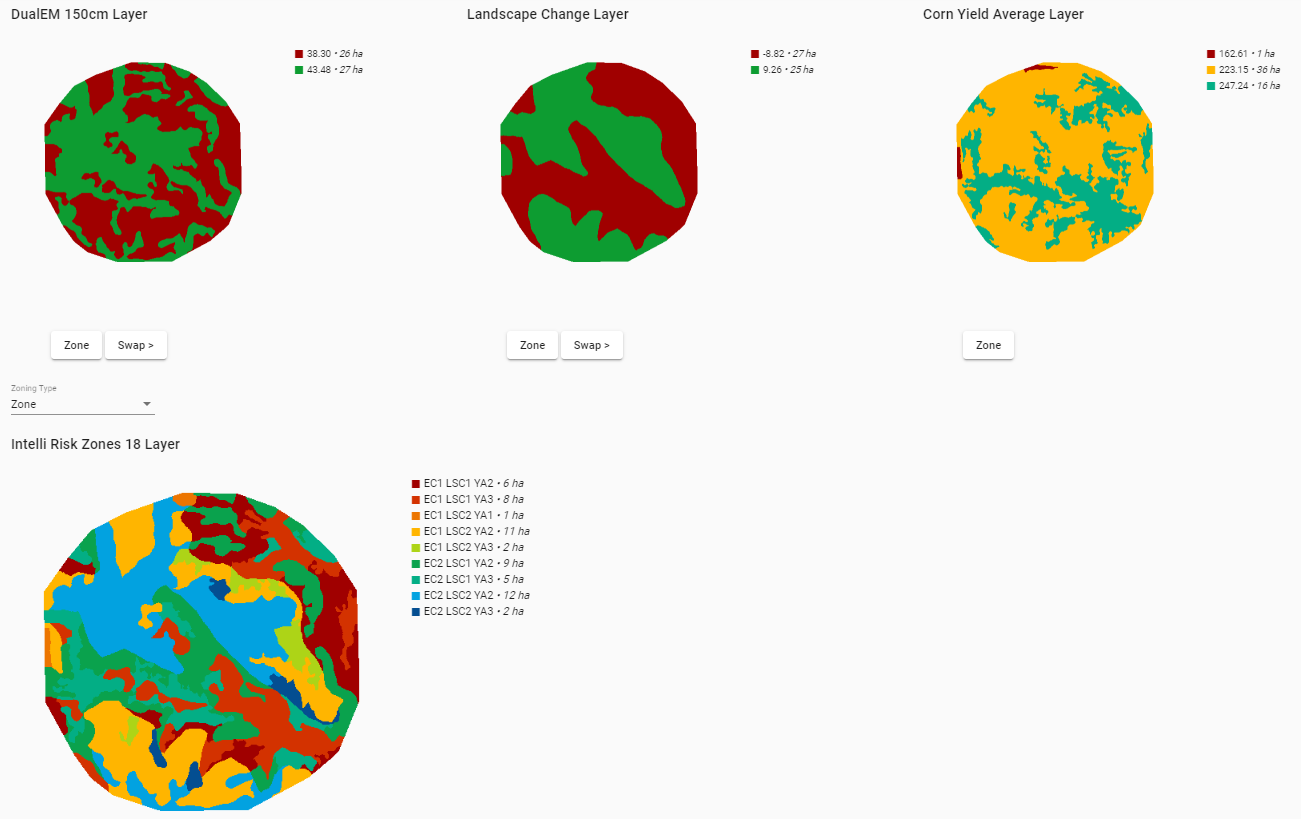

5. Selecting three layers will create an Intelli Zones layer.

6. The intersecting layers can create as many as 18 zones. However, the small area filter may reduce the zone number displayed in the case below.

7. The Zones button can be used to change zones and combinations such as 3x2x3 or 2x2x3 etc.

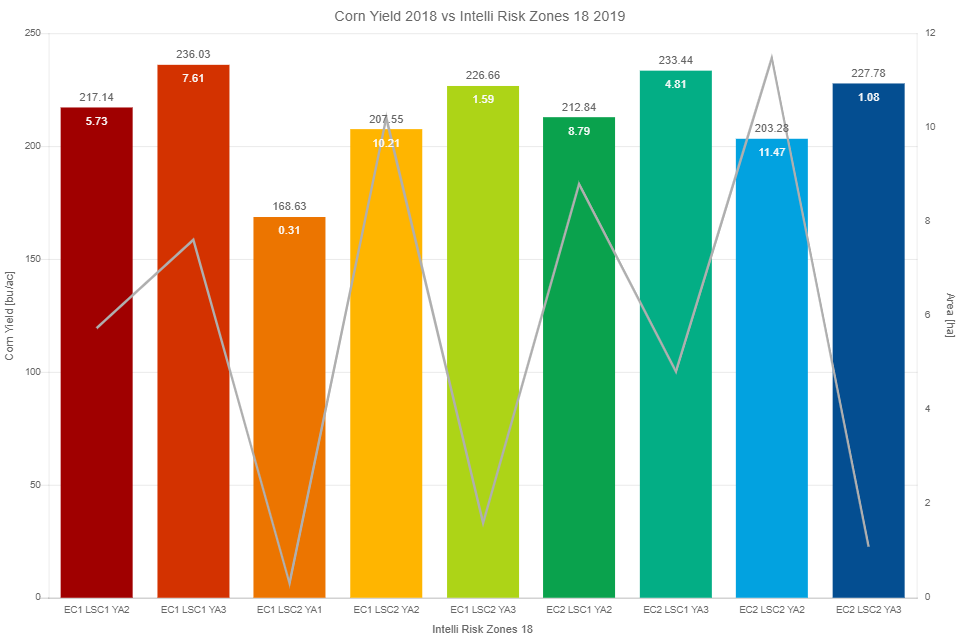

8. Intelli Risk Zones can be checked against yield as well as added soil points.
